QuantumT ™ is the smallest and fastest scanner in a successful line of Metrologic multi-mode countertop scanners. |
From
$595 |
| Connection |
Description |
Incl GST |
Buy Now |
| Keyboard Wedge PS2/AT |
MS-3580 QuantumT Scanner Keyboard Dual PS2/AT Connection |
$595 .00 |
|
| USB |
MS-3580 QuantumT Scanner
USB Connection |
$595 .00 |
|

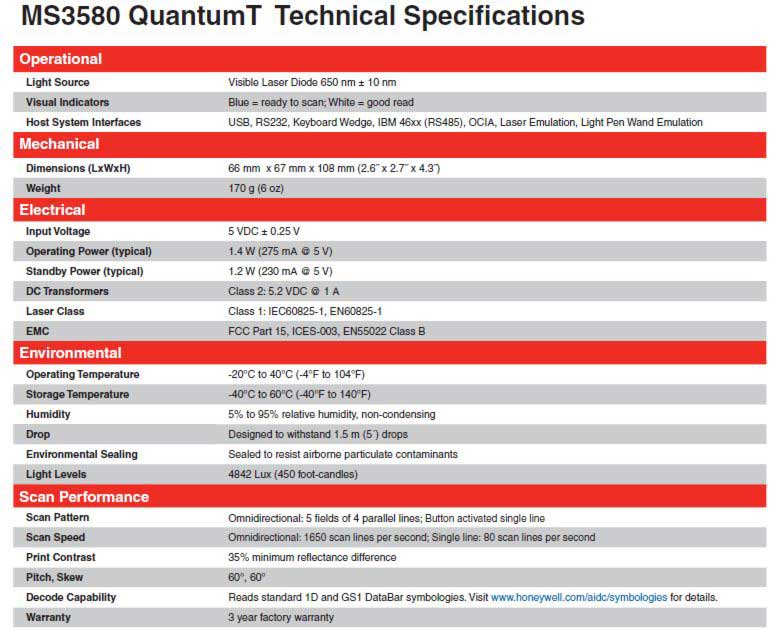

MS3580 QuantumT ™
| FEATURES |
| • |
Omnidirectional/Single-line mode |
| • |
Sleep Mode with IR wake-up |
| • |
Small footprint |
| • |
Programmable Depth of Field |
| • |
OPOS and JPOS system compatible |
MECHANICAL
Length 66 mm (2.60”)
Width 67 mm (2.65”)
Height 108 mm (4.25”)
Weight 170 g (6.0 oz)
Termination 10 position modular RJ45 connector
Cable Standard 2.1 m (7’) straight; optional 2.7 m (9’) coiled
for other cables call Metrologic
ELECTRICAL
Input Voltage 5 VDC + 0.25 V
Power 1.375 W
Operating Current 275 mA typical @ 5 VDC
DC Transformers Class 2; 5.2 VDC @ 650 mA
Laser Class Class 1; IEC60825-1:1993/A1:1997+A2:2001
Class 1; EN60825-1:1994/A11:1996+A2:2001
EMC FCC, ICES-003 & EN55022 Class A
OPERATIONAL
Light Source Visible Laser Diode 650 nm
Laser Power 1.1 mW (peak)
Decode Capability Autodiscriminates all standard 1D bar codes, including RSS Expanded,
RSS-14 and RSS-14 Limited; for other symbologies call Metrologic
System Interfaces RS232, Light Pen Emulation, Keyboard Wedge, Stand Alone
Keyboard, IBM 468x/469x, USB, Laser Emulation, OCIA
Number Characters Read Up to 80 data characters
Beeper Operation 7 tones or no beep
Indicators Blue = laser on, ready to scan
White = good read
ENVIRONMENTAL
Operating -20°C to 40°C (-4°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Light Levels Up to 4842 Lux (450 footcandles)
Contaminants Sealed to resist airborne particulate contaminants
Ventilation None required
SCAN PERFORMANCE
Depth of Scan Field 19 mm - 273 mm (.75” - 10.75”) for 0.33 mm (13 mil) bar
(programmable) code at default setting
Width of Scan Field 30 mm (1.2”) @ 25 mm (1.0”); 150 mm (5.9”) @
280 mm (11.0”)
Scan Speed Omnidirectional - 1650 scan lines per second
Raster - 320 scan lines per second
Single-line - 80 scan lines per second
Scan Pattern Omnidirectional - 5 fields of 4 parallel lines
(programmable primary Raster - 4 lines
and secondary scan modes) Single-line - 1 line
Minimum Bar Width 0.127 mm (5.0 mil)
Print Contrast 35% minimum reflectance difference
Roll, Pitch, Yaw 360°, 60°, 60°
