Home Page > Barcode Software > Budget Check In / Check Out Solution

spacer spacer spacer
spacer
My Storeroom Check In / Check Out Software
OPR-3201 Barcode Scanner

My Barcode Software - Budget Check In / Check Out Solution
My Storeroom Software
OPR-3201 Cabled Barcode Scanner

Our special includes the My Storeroom software and an OPR-3201 Cabled Barcode Scanner. Manage the location of your Tools, Equipment, Documents & People. This solution combines the powerful My Storeroom software with the OPR-3201 Barcode Scanner. This solution allows you to manage the check in and check out of your items and your consumables. Features an Unattended Mode where borrowers can simply scan their borrower barcode and then scan the items they are checking in or checking out. A simple powerful solution.

Play A Demonstration Video

spacer
Send Enquiry Budget Check In / Check Out Solution
- My Storeroom Software
- OPR-3201 Cabled Barcode Scanner
$ 995
spacer
spacer spacer spacer

  • Overview
  • Specifications
  • Downloads
  • Images

My Storeroom Software for Windows

Whether it is people, books or equipment checking “items” in and out of locations can be a time consuming and error-prone task. Many organizations use traditional methods like paper and pencil or basic spreadsheets to manage their Items. My Storeroom changes all of that.

  • Do you need to know the exact locations of all of your Items?
  • Do you want to have all of your item information at your fingertips ?
  • Do you need to create a database of your Items?
  • Do you need to track your consumable items?
Highslide JS
Check Out Screen
Highslide JSCheck In Screen Highslide JSManage Stock Screen
Highslide JSManage Borrowers Screen
Highslide JSManage Storerooms Screen
Highslide JSImport Data Screen
Highslide JSExport Data Screen
Highslide JSReports Screen

Highslide JS


Unattended Mode Screen

My Storeroom is a flexible solution that allows you to monitor the movement of your items. My Storeroom is simple to use.
The user interface was designed by customers. My Storeroom will get the job done quickly and effectively!


My Storeroom Features

  • All Item Information Available on One Screen
  • Full set of built in reports
  • User Definable Data Fields
  • Tracks Consumable Items
  • Barcode Scanner Enabled
  • Simple, Intuitive User Interface
  • SQL Lite Database
  • One touch sort by column
  • Full Unattended Mode
  • Dymo LabelWriter compatible
  • Powerful Data Import / Export Features
  • Date Stamping of all Item Transactions



OPR-3201 Cabled Barcode Scanner

FEATURES & BENEFITS


The scanning parts of the OPR3201 are positioned near the central core of the grip to stabilize the hand movement while scanning. Together with the large grip, this makes it easier and more comfortable to target the barcodes.

Plug & scan
The auto-trigger feature of the OPR3201 and the complementing stand initiates automatic scanning and allows the user to operate instantly and hands free. Available in USB, RS232 and Keyboard Wedge connectivity options, the OPR3201 can be easily integrated into any host computer system as a plug and play device

My Storeroom Check In / Check Out Software Specifications

The Easiest Software You Will Use

The My Storeroom software is easy to set up and administer. Simply follow the instructions.

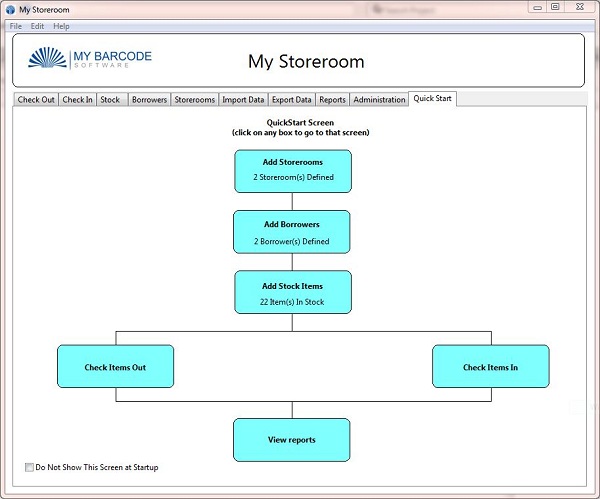

My Storeroom Main Page

Check In / Check Out Items Easily

We asked our customers what they wanted in a software package. They asked for the simplest interface possible. My Storeroom is as easy to use as barcode scanning the Location or Borrower and then clicking “Issue Items” or “Return Items”.

Unattended Mode

My Storeroom comes with an Unattended Mode. This means that borrowers can check items in and out on their own. It is as simple as scanning their borrower ID and then scanning the items.

My Storeroom Unattended Mode

A Full Set of Reports At Your Fingertips

My Storeroom comes complete with a full set of reports:

Simple, Intuitive User Interface

My Storeroom offers many simple & powerful features. All Items are displayed on one screen in a data grid that can be easily navigated. Click any item within the grid to display the complete information on that item. Click any column in the grid to automatically sort the information within that column.

Advanced Data Capabilities

Field Names like Description, Location,Due Date, Quantity and Cost are already defined for you. My Storeroom also allows you to define your own field names. You can also define Items as Consumable to track those items that are used in the field.

Barcode Scanner Enabled

My Storeroom has been designed to work seamlessly with barcode scanners. The software has been tested with many of the barcode scanners on the market today.




Full Filtering & Search Capabilities

My Storeroom for PC provides you with different ways to view your data. A full search capability allows you to locate data within your database. A filter capability gives you the ability to view of a portion of your database.

Upload / Download Data to Your PC

My Storeroom allows you to upload and download information from your item database. Powerful Import/Export wizards assist you through the process.

Based on SQL Lite

SQLite is a popular choice for local/client storage. It is a small and extremely fast database. It is arguably the most widely deployed database engine, as it is used today by several widespread browsers, operating systems.

OPR-3201 Cabled Barcode Scanner Specifications

Operating indicators
Visual 1 LED (red/green/orange)
Non-visual Buzzer
Operating keys
Entry options 1 scan key
Communication
RS232 DB9 PTF connector with external power supply
Keyboard Wedge MiniDIN6 F/M connector
USB Ver. 1.1, HID/VCP, USB-A connector
Power
Voltage requirement 5V ± 10% (Keyboard Wedge and USB), 6V (min. 4.5, max. 6.5V) (RS232)
Current consumption Max. 100mA (typical use)
Barcode scanner Optics
Light source 650 nm visible laser diode
Scan method Bi-directional scanning
Scan rate 100 scans/sec
Trigger mode Manual, auto-trigger, stand detection
Reading pitch angle -35 to 0º, 0 to +35º
Reading skew angle -50 to -8°, +8 to +50°
Reading tilt angle -20° to 0º, 0 to +20º
Curvature R>15 (EAN8), R>20 (EAN13)
Min. resolution at PCS 0.9 0.127 mm / 5 mil
Min. PCS value 0.35
Depth of field 40 - 500 mm / 1.57 - 19.69 in (1.0 mm / 39 mil), 20 - 350 mm / 0.79 - 13.78 in (0.5 mm / 20 mil), 20 - 200 mm / 0.79 - 7.87 in (0.25 mm / 10 mil), 20 - 100 mm / 0.79 - 3.94 in (0.15 mm / 6 mil), 30 - 70 mm / 1.18 - 2.76 in (0.127 mm / 5 mil), at PCS 0.9, Code 39
Supported Symbologies
Barcode (1D) JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code Chinese Post, Korean Postal Authority code
2D code Composite codes, MicroPDF417, PDF417
Durability
Temperature in operation -5 to 50 °C / -23 to 122 °F
Temperature in storage -20 to 60 °C / -4 to 140 °F
Humidity in operation 5 - 95% (non-condensing)
Humidity in storage 5 - 90% (non-condensing)
Ambient light immunity White 3,000 lx max, Fluorescent 3,000 lx max, Direct sun 50,000 lx max
Drop test 1.5 m / 5 ft drop onto concrete surface
Vibration test 10 - 100 Hz with 2G for 1 hour
Protection rate IP 42
Physical
Dimensions (w x h x d) 56 x 149 x 109 mm / 2.20 x 5.87 x 4.29 in
Dimensions stand (w x h x d) 146 x 106 x 295 mm / 5.75 x 4.17 x 11.61 in (excl. scanner)
Weight body Ca. 80 g / 2.8 oz (excl. cable)
Weight stand CA. 385 g / 13.85 oz
Case ABS, Black or White
Regulatory & Safety
Product compliance CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
OPR-3201 Cabled Barcode Scanner OPR-3201 Cabled Barcode Scanner
Highslide JS
Check Out Screen
Highslide JSCheck In Screen Highslide JSManage Stock Screen
Highslide JSManage Borrowers Screen
Highslide JSManage Storerooms Screen
Highslide JSImport Data Screen
Highslide JSExport Data Screen
Highslide JSReports Screen

Highslide JS


Unattended Mode Screen
